IANR Flood Creek Bridge

Deck Plate Girder Bridge over Flood Creek
Packard, Butler County, Iowa

Click the Photo Above to See All Photos of This Bridge!
Name IANR Flood Creek Bridge
Built By Chicago, Rock Island & Pacific Railroad
Contractor American Bridge Company of New York
Currently Owned By Iowa Northern Railway
Length 170 feet Total, 70 Foot Main Span
Width 1 Track
Height Above Ground 12 Feet (Estimated)
Superstructure Type Deck Plate Girder
Substructure Type Deck Plate Girder
Date Built 1929
Traffic Count 3 Trains/Day (Estimated)
Current Status In Use
Significance Local Significance
Documentation Date March 2015
In 1872, the Burlington, Cedar Rapids and Minnesota railway company continued building on it’s mainline from Waterloo, Iowa. The new extension crossed the Cedar River at Cedar Falls, crossed the Shell Rock River at Rockford, bypassed Mason City and ended at Plymouth Jct, where it met up with an old Milwaukee Road line. In 1876, the railroad went into receivership and was sold to the Burlington, Cedar Rapids and Northern. The BCR&N built 5 more miles to Manly, Iowa in 1877 where it then purchased trackage rights over the Iowa Central to Northwood. The Iowa Central never built past Northwood, and the BCR&N built to Albert Lea, where it could meet up with the M&STL. The Iowa Central used this line too.

After building and buying all the way to St. Paul, MN in 1902 the BCR&N was purchased by the Rock Island Railroad. (CRIP) The Rock Island had trackage rights in the St. Paul area. This completed the Spine Line. The Spine Line ran from St. Paul, MN to Kansas City, MO. This line was crucial to the Rock Islands health. The Spine Line ran through Mason City, splitting off at Manly.

But the Rock Island was a poor railroad, often going into Bankruptcy. Negotiations began for a Union Pacific and Rock Island merger in 1960, and fell through in 1980. The line here was well engineered, but due to a suffering Rock Island became unkempt and unmaintained. The Rock Island entered receivership in 1980. The Iowa Northern purchased the portion from the Nora Springs (12 miles east of Mason City) at the junction of the Milwaukee road to Shell Rock, near Waterloo. They operated as a shortline. It was completely purchased between Manly and Cedar Rapids by 1982, for a total of 5.4 Million.

Today, the Iowa Northern has a few more branch lines, but their mainline continues to be from Manly to Cedar Rapids. The line sees about 2 trains a day, and is in decent condition.
10/24/21


Located north of Clarksville, this three span deck girder bridge crosses Flood Creek.

The bridge was built by American Bridge Company in 1929 to replace a similar bridge. That bridge was in a wreck in 1916, in which a train derailed and killed four.
Currently, the bridge contains three deck girder spans, set onto concrete substructures.
Overall, the bridge appears to be in good condition.

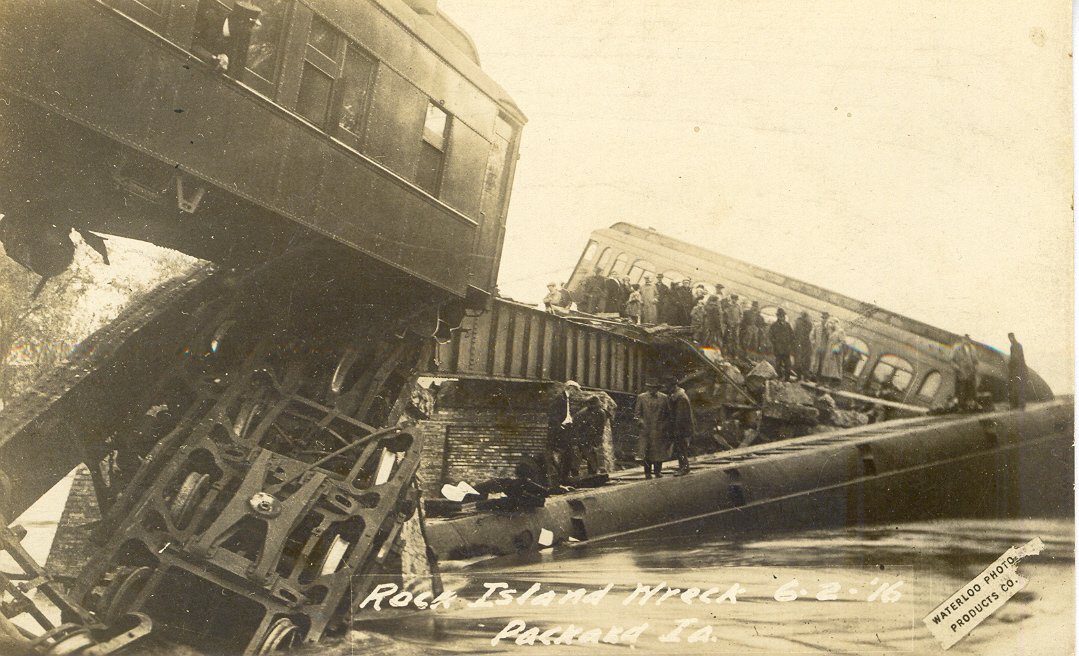

Historic Photo
Photo of the 1916 derailment. Credit to PhotoLibrarian on Flickr, used with Creative Commons permission.

The author has ranked this bridge as being locally significant, due to the common design.
The photo above is an overview.

Citations

Source Type

Source

Build Date Destruction of previous bridge
Contractor Missing American Bridge Company plaque
Railroad Line History Source ICC Valuation Information, Compiled by Richard S. Steele
